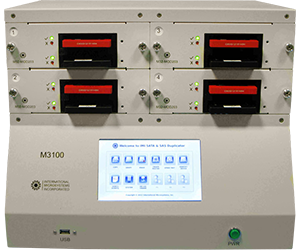

M3100 SSD & Hard Drive Duplicator

M3100 SATA & SAS Copier

The M3100 is a professional high-speed SATA hard drive duplicator system that performs fast parallel duplication of 8 SATA & SAS devices.

M3100
M3100-hard-drive-duplicator
m3100-300-250
M3100_BACK_R2
M3100_SIDE_R2
M3100_JOBRUN1
M3100_JOBSCREEN1
M3100_EDIT1
M3100_LOG1
M3100-hard-drive-duplicator
previous arrow
next arrow
m3100-300-250
M3100_BACK_R2
M3100_SIDE_R2
M3100_JOBRUN1
M3100_JOBSCREEN1
M3100_EDIT1
M3100_LOG1
M3100-hard-drive-duplicator
previous arrow
next arrow

Fast

  • Copying speeds of over 200MB/s
  • Equivalent of over 12GB / min simultaneously on 8 drives
  • IMI’s “Smart Copy” copies only the used portions of a master device
  • Flexible copy modes such as “% of Disk” to copy all system file types

Easy

  • Supports stand-alone duplication
  • Customize duplication processes to your specific requirements

Reliable

  • Binary image copy for 100% identical to the original master
  • IMI’s “Smart Copy” copies only the used portions of a master device, dramatically reducing the copy time
  • Uses a ‘bit-by-bit’ verification against the master
  • Auto verification using CRC32 & MD5 check

Adaptable

  • Supports all SATA form factors including 3.5”, 2.5”, 1.8”, MO-297, MO-300 and custom Hard Drives.
  • Either standalone or via the built in PC allowing user defined test and duplication jobs
  • Removable adapter modules allow for quick and easy configuration changes
  • Supports custom scripts to adapt to your production needs
